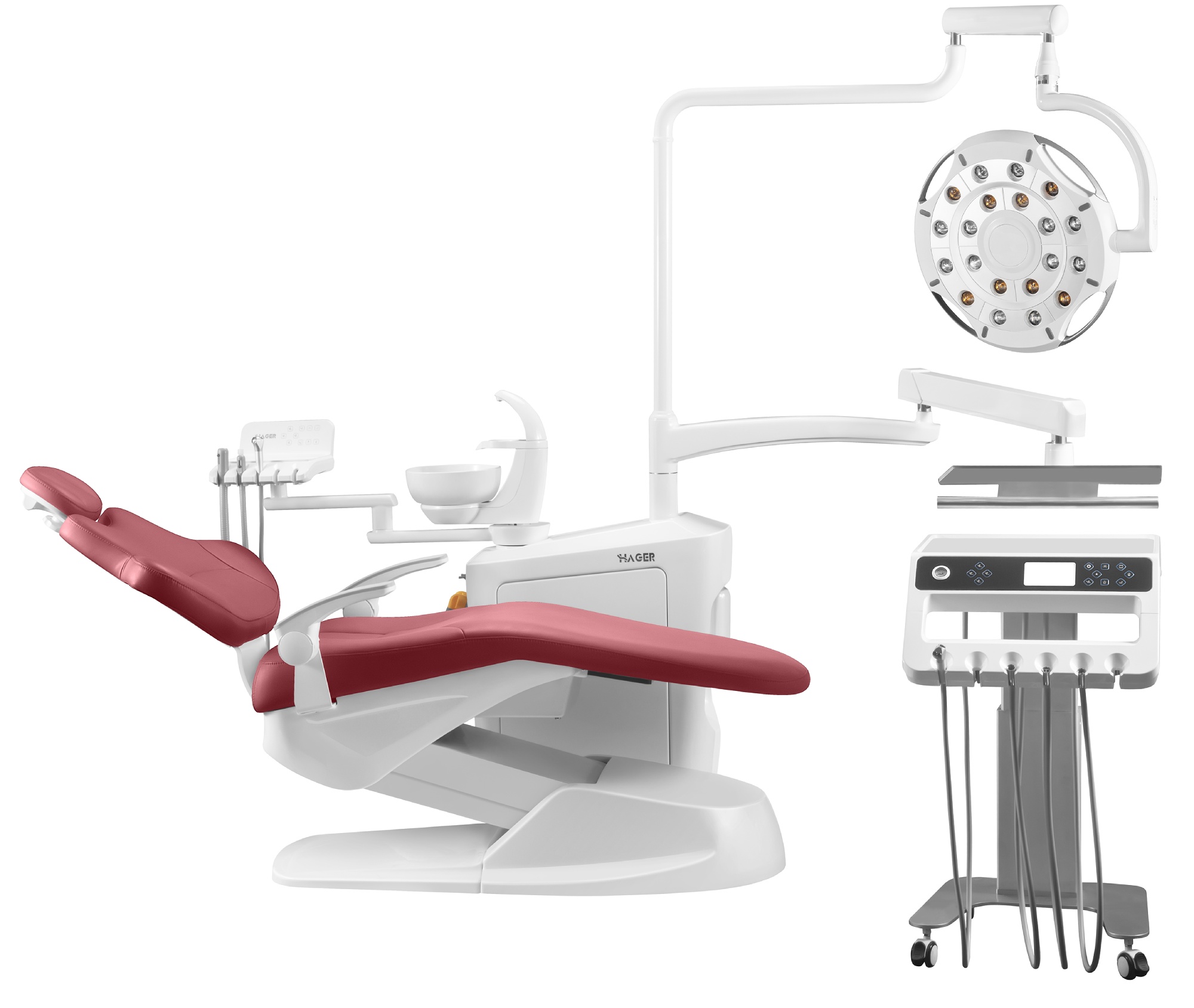

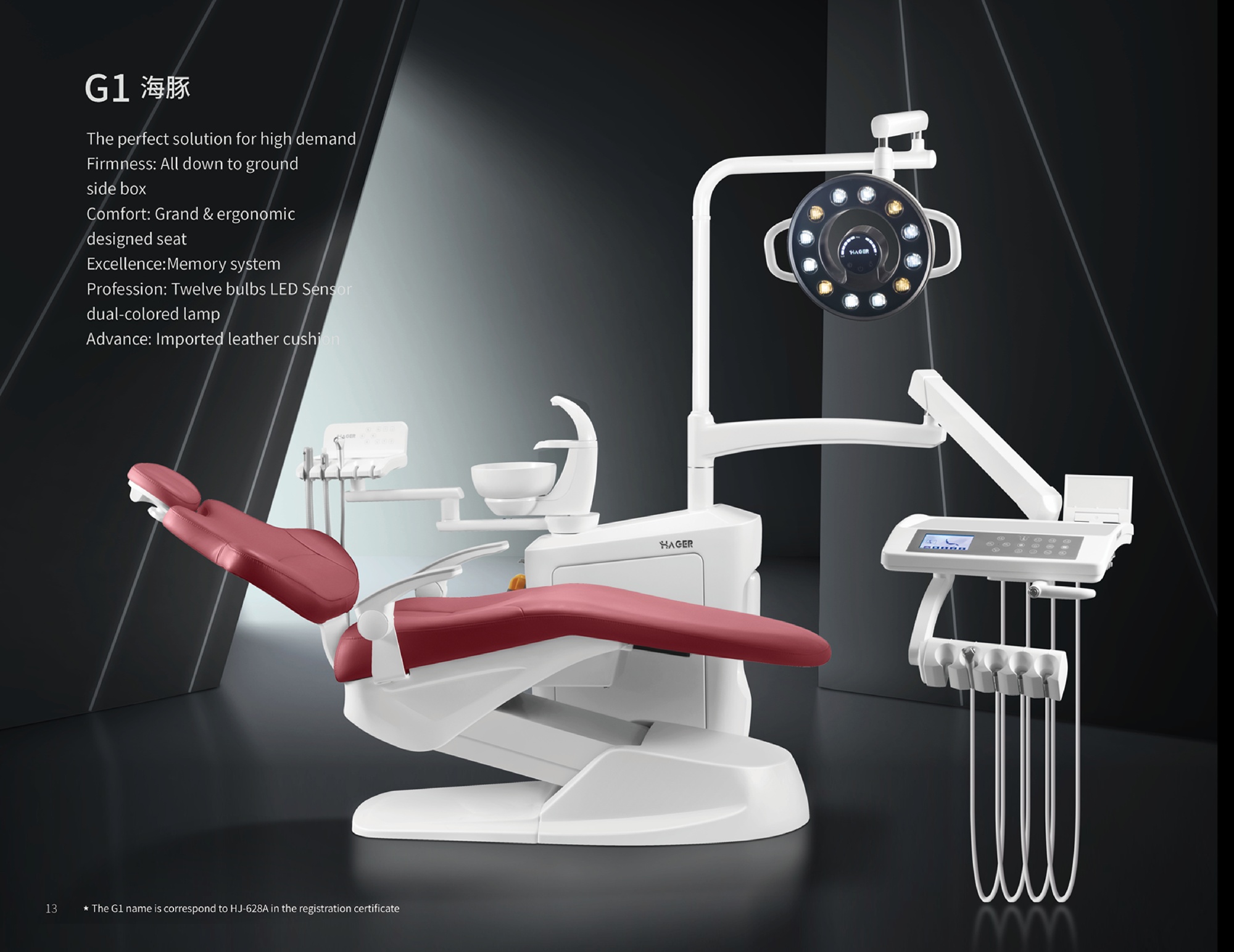

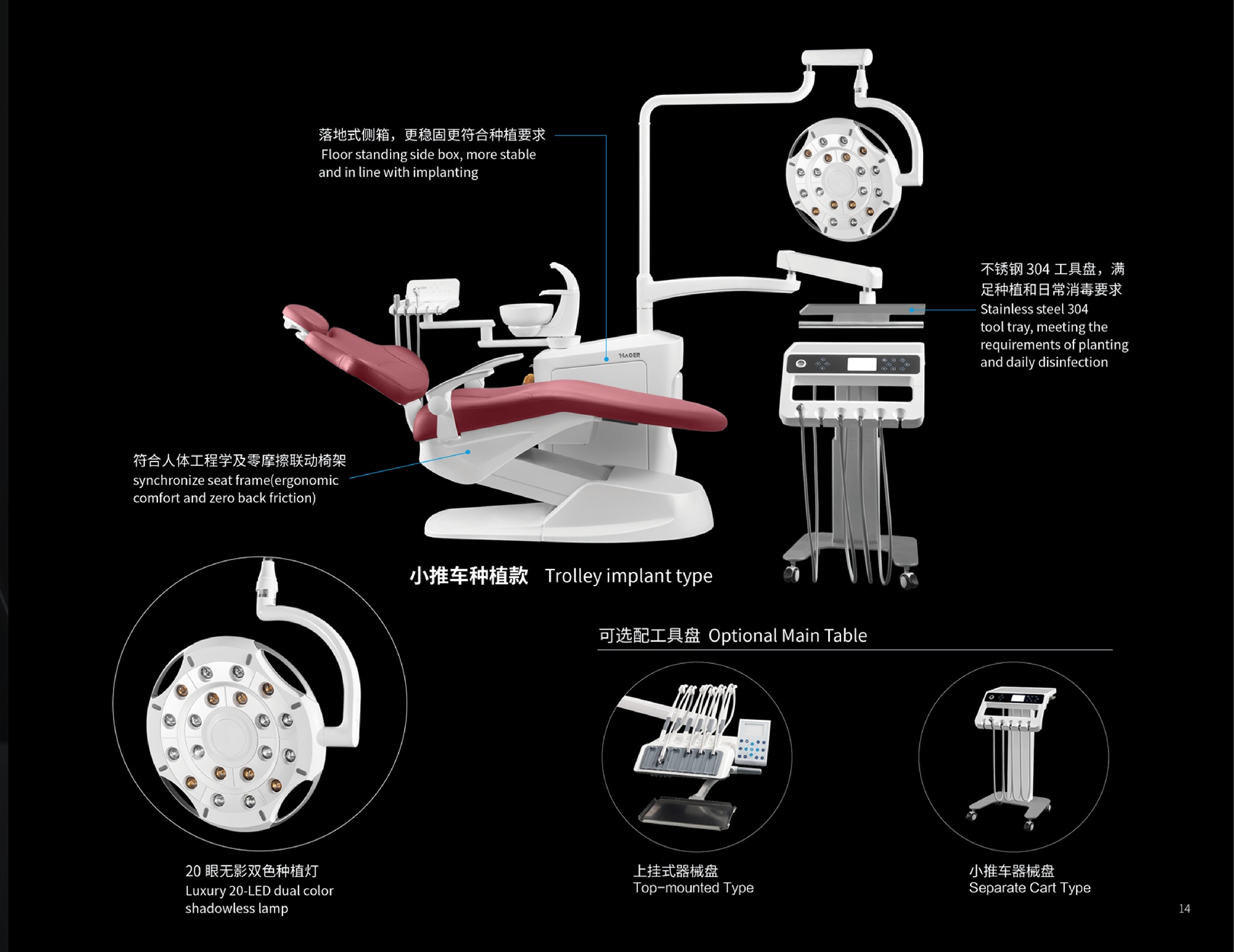

The Dolphin G1 Dental Unit combines German-engineered hydraulic technology with clinician-centric design. Its modular structure supports seamless integration with imaging systems and EHR platforms, meeting HIPAA-compliant dental workflows. The unit's noise-reduced operation (<45dB) and 5-year warranty demonstrate our commitment to sustainable healthcare solutions.



Parameter Specification
Supply voltage AC110V/220V 60Hz/50Hz
Motor voltage DC24V
Air pressure 0.5MPa - 0.8MPa
Water pressure 0.2MPa - 0.4MPa

Major Parts

Major Information Details
1. Water heating system Integrated water heating system
2. Spittoon flushing and cup filling Rotatable spittoon with flushing and filling features
3. Electric lift chair Quiet operation supported by Denmark motors

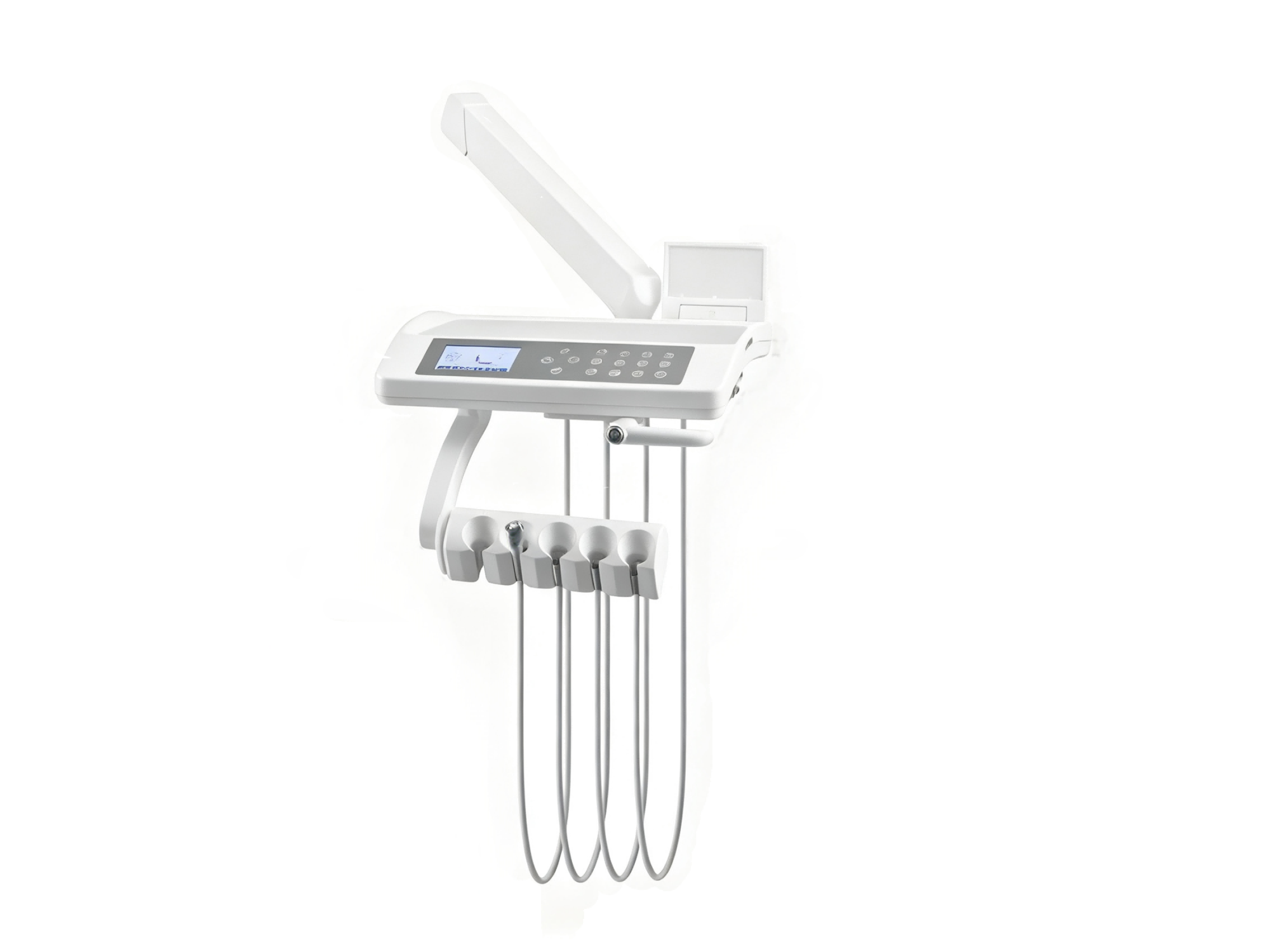

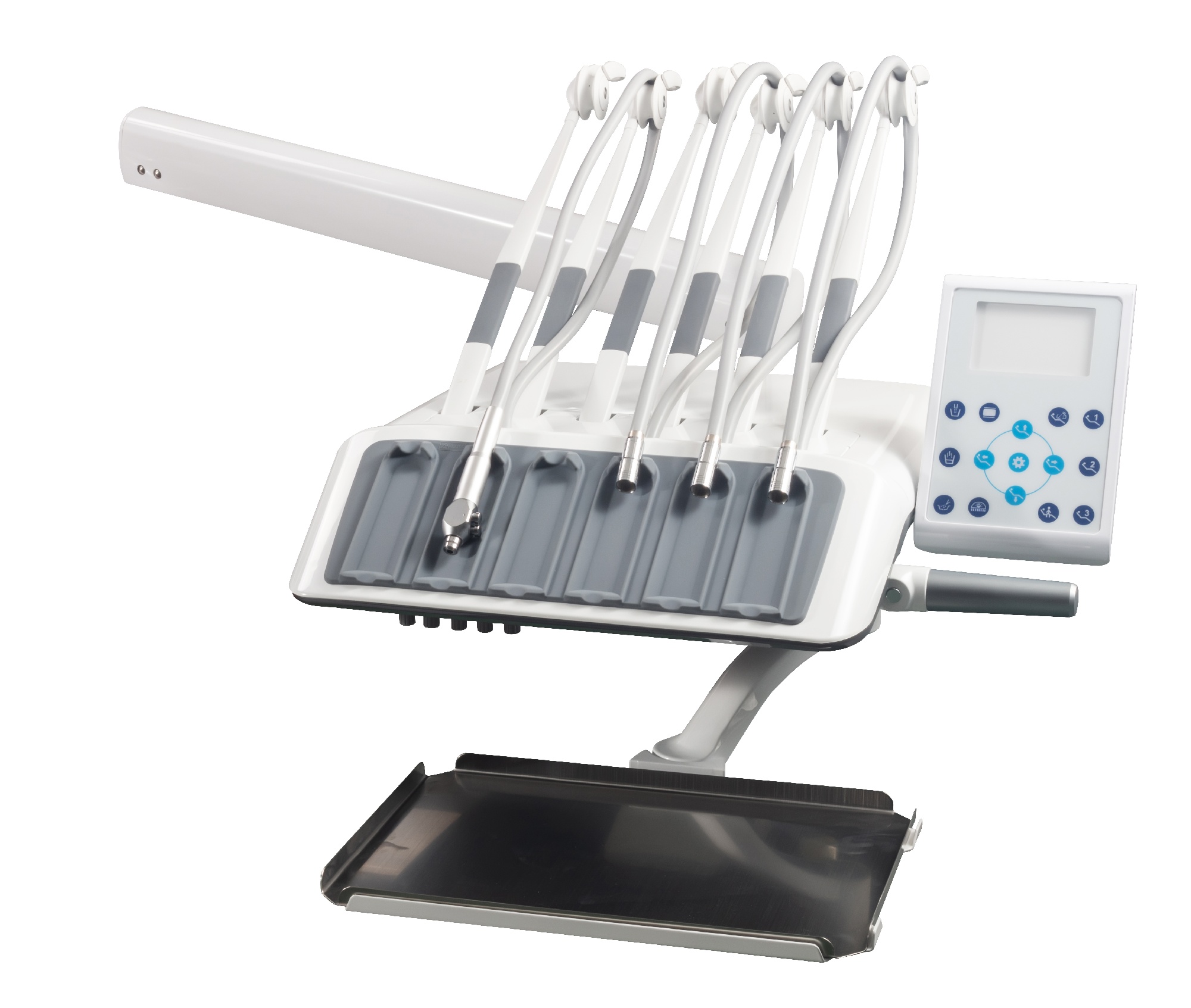

4. Control panel LCD display for intuitive operation
5. Chair movement system 9 memory positions for customized adjustments
6. LED film viewer Panoramic viewer for dental imaging
7. Assistant control panel Easy-to-use control panel for the assistant
8. Ceramic spittoon Rotatable ceramic spittoon for convenience

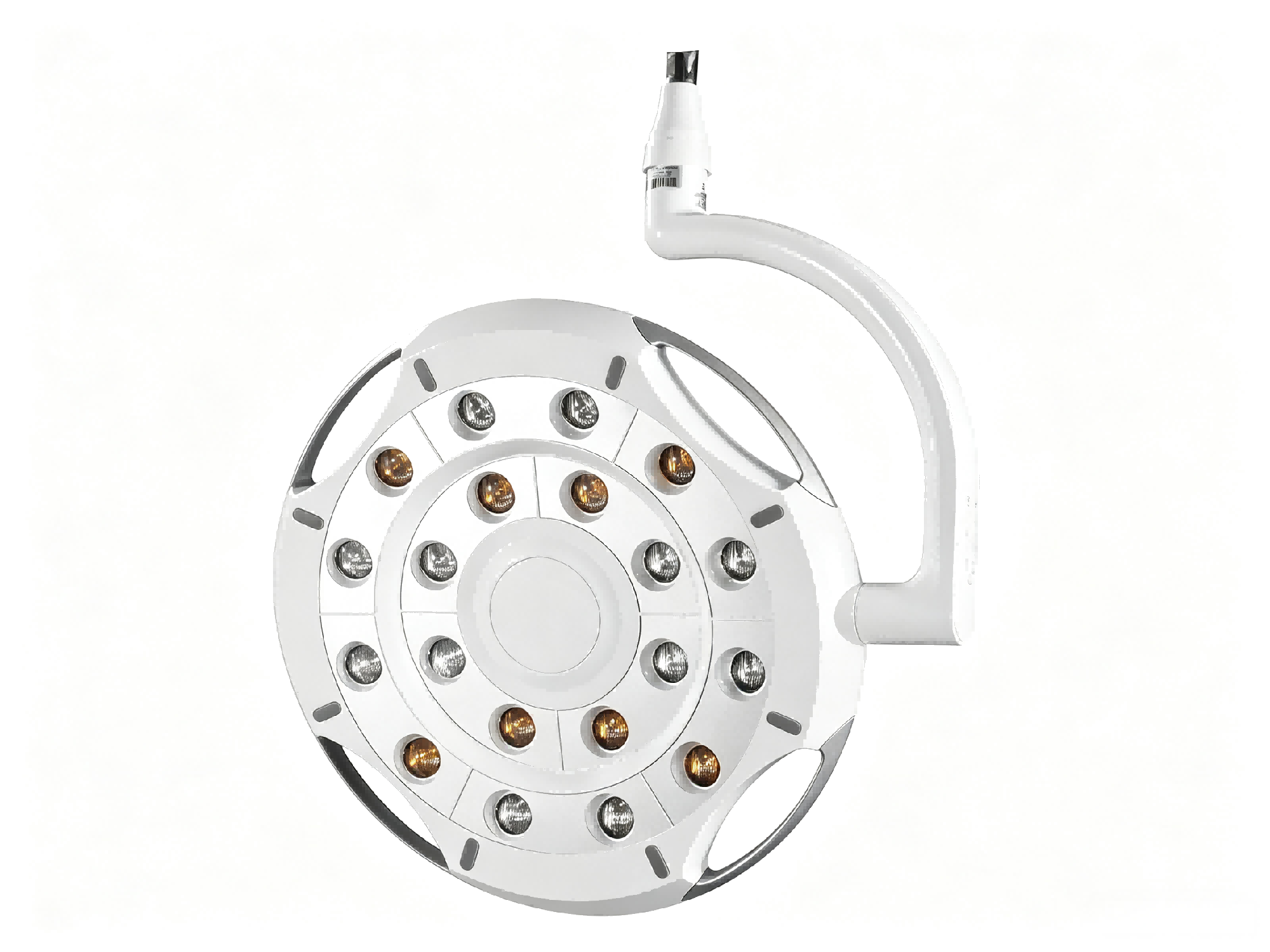

9. Dental light Shadowless LED sensor light
10. Pedal switch Multifunctional pedal switch for various controls
11. Pure water bottles Double bottles for uninterrupted operations
12. Tissue box and cup holder Built-in for added convenience
13. Dentist stool Deluxe ergonomic stool for comfort
14. Tubing Imported polyether inner tubing for durability
15. Side box Spacious grand side box for storage

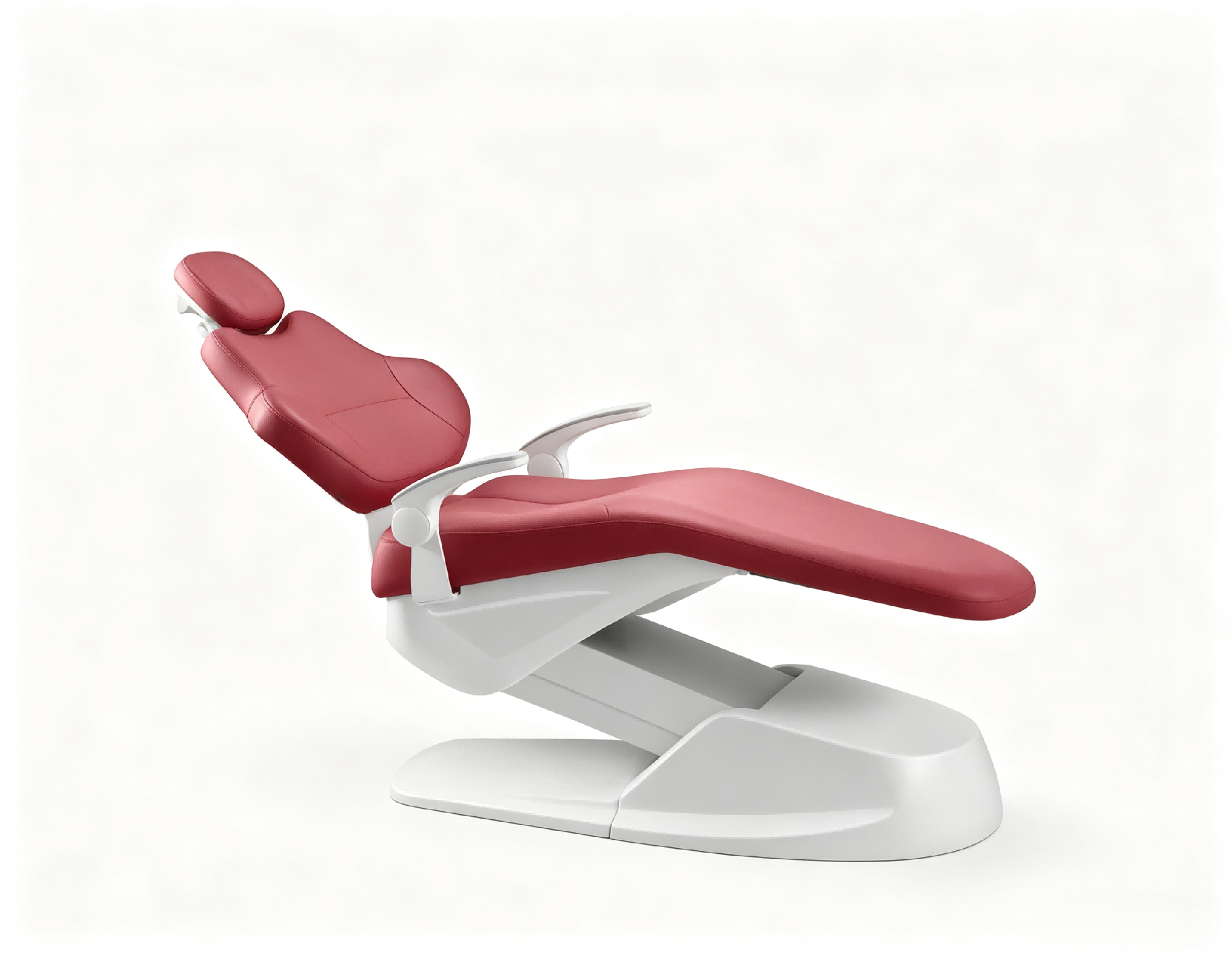

① Patient' s Comfort







Ergonomic Design for Enhanced Patient Comfort

Contoured headrest surface fixes neck well. Curved backrest with soft patient's head and supports pater arc-line shape fits patient' s back better and gives a tender support

140x140







② Doctor’s Comfort



140x140





Ergonomic Design to Prevent Occupational Strain for Dentists

Keeping the same gesture for long time during a dental implantation poses a major burden to doctor's muscles. Our special design on this equipment aims to decrease doctor' s occupational diseases like cervical spondylosis and scapulohumeral periarthritis







Assistant Multifunctional Tray

The assistant tray can be used to control patient chair seat and backrest up and down, spittoon flushing ,heating, cup filling and lamp control

140x140



140x140





Multi-Functional Foot Pedal

The Foot Pedal let doctor easy to controls LED operation lamp and cup filler, water air separately design easy to separately control water and air, and it also features Chip blow button and backrest/ seat up and down control function easy to use and efficient for surgery

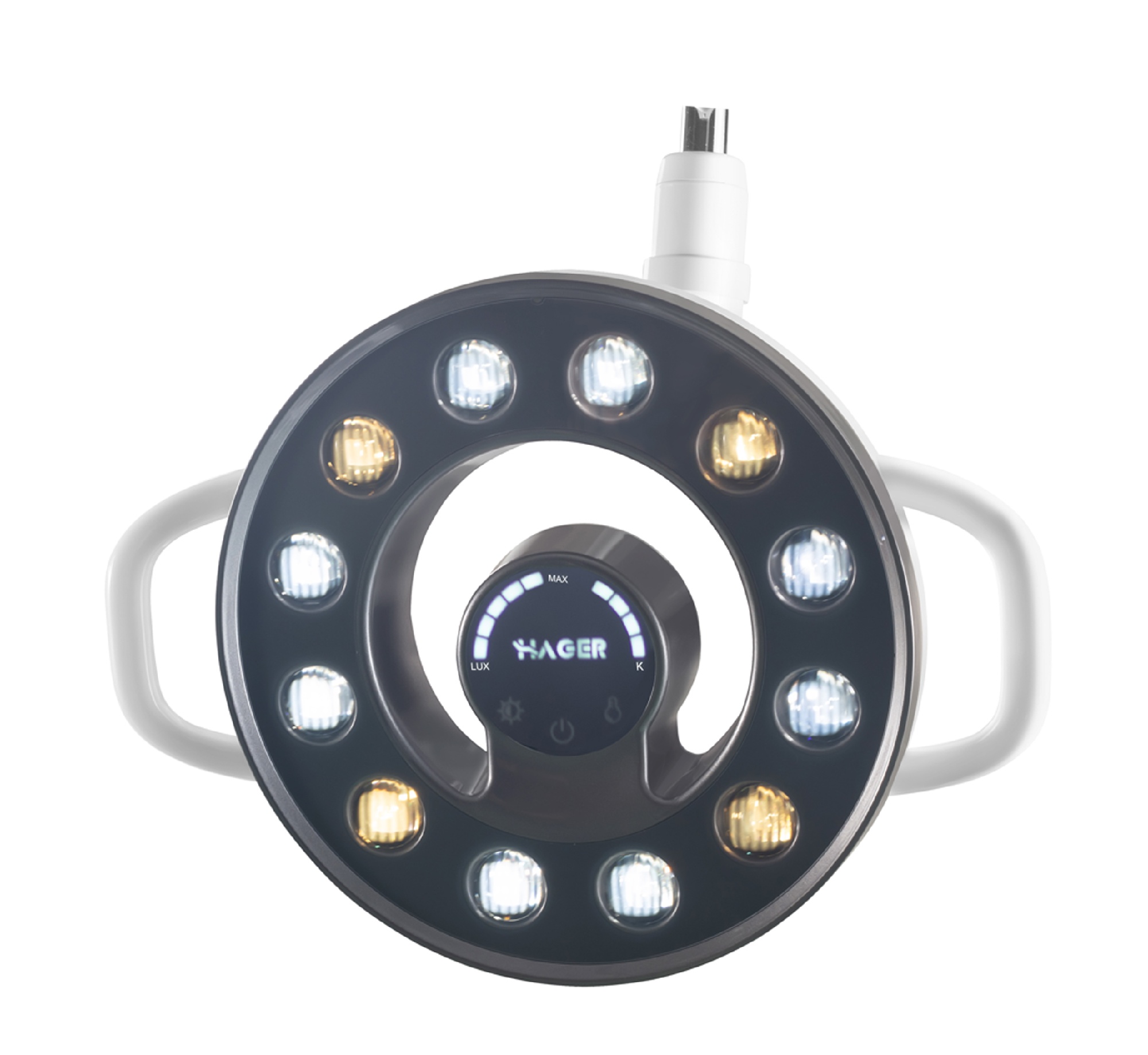

Shadowless and dimmable Dual-Color LED Lamp

140x140





140x140





Self-designed PCB System, Import Chip







Rotatable spittoon


140x140
